The Jahn-Teller effect is not a vague tendency toward lower symmetry. It is a precise vibronic instability: a non-linear molecule or local coordination unit with a degenerate electronic state can lower its total energy by distorting along symmetry-allowed nuclear coordinates. The triangular \(\mathrm{Li_3}\) and \(\mathrm{Na_3}\) clusters are clean examples because three equivalent atomic \(s\) orbitals already contain the essential algebra.

Degeneracy and Occupation

Suppose two orbitals are degenerate at a high-symmetry geometry. A distortion coordinate \(Q\) may split them as

\[ \varepsilon_1(Q)=\varepsilon_0-gQ,\qquad \varepsilon_2(Q)=\varepsilon_0+gQ . \]

If the degenerate shell is not occupied symmetrically, the electrons can choose the lower branch. For one electron in the pair,

\[ E_{\mathrm{el}}(Q)=\varepsilon_0-g|Q|. \]

The elastic cost of the distortion is quadratic to leading order,

\[ E_{\mathrm{nuc}}(Q)=\frac{1}{2}KQ^2. \]

The total energy is therefore

\[ E(Q)=E(0)-g|Q|+\frac{1}{2}KQ^2. \]

Near \(Q=0\), the electronic stabilization is linear while the nuclear penalty is quadratic. The high-symmetry point is unstable, and the minimum occurs at

\[ Q_0=\frac{g}{K},\qquad \Delta E_{\mathrm{JT}}=-\frac{g^2}{2K}. \]

This is the mathematical meaning of an "asymmetric occupation" of degenerate orbitals. In density-matrix language, the occupation matrix inside the degenerate subspace is not proportional to the identity:

\[ \rho \ne cI. \]

If instead every member of the degenerate shell is occupied equally, \(\rho=cI\), the first-order Jahn-Teller driving force cancels.

Symmetry as an Invariant Subspace

Let \(R_0\) be a high-symmetry nuclear geometry with point group \(G\). The electronic Hamiltonian at this geometry is invariant under every symmetry operation of the group. More precisely, if \(\hat U_g\) is the operator that acts on electronic wavefunctions by the point-group operation \(g\), then

\[ [\hat H_e(R_0),\hat U_g]=0,\qquad g\in G. \]

If \(\psi\) is an electronic eigenstate,

\[ \hat H_e(R_0)\psi=E\psi, \]

then the transformed state \(\hat U_g\psi\) has the same energy:

\[ \hat H_e(R_0)(\hat U_g\psi) = \hat U_g\hat H_e(R_0)\psi = E(\hat U_g\psi). \]

Thus symmetry operations cannot take a state out of its energy eigenspace. They act inside the degenerate subspace. For an \(n\)-fold degenerate level with basis \(\{\psi_1,\ldots,\psi_n\}\),

\[ \hat U_g\psi_i=\sum_j D_{ji}(g)\psi_j . \]

The matrices \(D(g)\) form a representation of \(G\). Decomposing the electronic Hilbert space into irreducible representations is therefore not a labeling convention added afterward; it follows from the symmetry of the Hamiltonian. One-dimensional irreducible representations give nondegenerate symmetry blocks, while multidimensional irreducible representations, such as \(E_g\), \(T_{2g}\), or \(e'\), enforce degeneracy as long as the high symmetry is retained.

The subtle point is that a multidimensional irreducible subspace is invariant as a whole, but a single chosen vector inside it is usually not invariant under the full group. A \(p_x\)-like orbital can be rotated into \(p_y\); a \(d_{z^2}\)-like component of an \(E_g\) pair can be transformed into another linear combination within the same \(E_g\) space. Jahn-Teller physics begins exactly here: the lattice has symmetry \(G\), but an occupied direction inside a degenerate electronic subspace can have only a subgroup \(H\subset G\).

Density Components and Selection Rules

The charge density is a scalar function, but it is still a function on which the point group acts. It can be decomposed into symmetry components, much as an ordinary periodic function can be decomposed into Fourier components:

\[ \rho(\mathbf r)= \rho_{A_1}(\mathbf r)+ \rho_\gamma(\mathbf r)+\cdots . \]

The fully symmetric component is obtained by group averaging,

\[ \rho_{A_1}(\mathbf r)= \frac{1}{|G|} \sum_{g\in G}\rho(g^{-1}\mathbf r), \]

and satisfies

\[ \hat U_g\rho_{A_1}=\rho_{A_1},\qquad g\in G. \]

This part of the density cannot select a lower-symmetry direction. It can couple to a totally symmetric breathing mode, but such a mode preserves the point group and does not split a symmetry-protected degeneracy.

The Jahn-Teller source is the non-totally-symmetric part, \(\rho_\gamma\). It represents an electronic anisotropy: more charge along one direction than another, or one site of a symmetric cluster being distinguished from equivalent sites. A nuclear normal coordinate \(Q_\gamma\) can couple linearly to that density only if the product is a totally symmetric scalar. In group-theoretical language,

\[ \Gamma(Q_\gamma)\otimes\Gamma(\rho_\gamma)\supset A_1. \]

This condition says that the direct product of the distortion symmetry and the electronic-density symmetry must contain the fully symmetric representation. Otherwise the proposed coupling term changes under some operation of \(G\), and its coefficient must vanish in a \(G\)-symmetric Hamiltonian.

For a two-component \(e'\) density and a two-component \(e'\) distortion in \(D_{3h}\),

\[ e'\otimes e'=a_1'\oplus a_2'\oplus e', \]

so a totally symmetric contraction exists:

\[ E_{\mathrm{JT}} = -g(Q_1\rho_1+Q_2\rho_2). \]

This is the compact symmetry statement behind the verbal picture: the low-symmetry electronic density and the low-symmetry lattice distortion must point in matching representation channels, while their product remains a legitimate scalar contribution to the total energy.

How Three \(s\) Orbitals Become \(a_1'+e'\)

In an equilateral \(\mathrm{M_3}\) triangle, with \(\mathrm{M}=\mathrm{Li}\) or \(\mathrm{Na}\), the point group is \(D_{3h}\). Each atom contributes one valence \(s\) orbital. Call the three localized orbitals \(\chi_1,\chi_2,\chi_3\). A molecular orbital is a linear combination

\[ \psi=c_1\chi_1+c_2\chi_2+c_3\chi_3 . \]

There are three basis orbitals, so there must be three independent molecular orbitals. They cannot all be the same orbital, because independent quantum states must be linearly independent and can be chosen orthogonal.

The fully symmetric combination is

\[ \psi_{a_1'}=\frac{1}{\sqrt{3}}\left(\chi_1+\chi_2+\chi_3\right). \]

It is unchanged by the symmetry operations of \(D_{3h}\), so it belongs to the one-dimensional representation \(a_1'\). The two remaining combinations must be orthogonal to it, so their coefficients satisfy \(c_1+c_2+c_3=0\). One convenient choice is

\[ \psi_{e_1'}=\frac{1}{\sqrt{6}}\left(2\chi_1-\chi_2-\chi_3\right), \qquad \psi_{e_2'}=\frac{1}{\sqrt{2}}\left(\chi_2-\chi_3\right). \]

These two functions transform into each other under rotations and reflections, so they form a two-dimensional \(e'\) representation. The symmetry decomposition is therefore

\[ 3s \rightarrow a_1' + e'. \]

The same result appears from the three-site Huckel Hamiltonian

\[ H= \begin{pmatrix} \alpha & \beta & \beta\\ \beta & \alpha & \beta\\ \beta & \beta & \alpha \end{pmatrix}, \]

whose eigenvalues are

\[ \varepsilon(a_1')=\alpha+2\beta,\qquad \varepsilon(e')=\alpha-\beta . \]

For the usual bonding sign \(\beta<0\), \(a_1'\) is the lower bonding orbital and \(e'\) is a degenerate pair.

Li3 and Na3

Neutral \(\mathrm{Li_3}\) and \(\mathrm{Na_3}\) each have three valence electrons:

\[ \mathrm{Li}:2s^1,\qquad \mathrm{Na}:3s^1. \]

At the equilateral geometry the occupation is

\[ (a_1')^2(e')^1. \]

The \(e'\) shell is open and degenerate, with only one electron in a two-dimensional orbital space. That is a first-order Jahn-Teller situation. An \(e'\)-type vibrational distortion lowers one branch of the \(e'\) pair and raises the other, so the single electron occupies the lower branch.

The same point can be expressed directly in the density language. If the occupied \(e'\) combination is approximately

\[ \psi= \frac{1}{\sqrt{6}} \left(2\chi_1-\chi_2-\chi_3\right), \]

then, ignoring overlap terms, the site-density pattern is proportional to

\[ (4,1,1)=(2,2,2)+(2,-1,-1). \]

The first vector is the totally symmetric \(a_1'\) average. The second is the \(e'\)-type anisotropy: site 1 is distinguished while sites 2 and 3 remain equivalent. That non-totally-symmetric density component couples to an \(e'\) distortion and naturally produces an isosceles triangle.

Geometrically this changes the equilateral triangle into an isosceles triangle:

\[ D_{3h}\rightarrow C_{2v},\qquad R_{12}=R_{13}\ne R_{23}. \]

The two clusters therefore share the same symmetry argument. Their quantitative difference is in the vibronic coupling \(g\), the effective stiffness \(K\), anharmonic terms, and nuclear masses. Static electronic energy does not depend directly on mass, but dynamic Jahn-Teller motion and nuclear quantum effects do: lighter \(\mathrm{Li}\) nuclei make zero-point motion and tunneling more plausible when the barrier between equivalent distorted structures is shallow.

Why Symmetry Is Not Broken Completely

Jahn-Teller distortion is economical. It does not lower symmetry for its own sake; it lowers symmetry only enough to remove the electronic degeneracy. In the octahedral \(e_g\) example, a tetragonal distortion gives

\[ O_h\rightarrow D_{4h},\qquad E_g(O_h)\rightarrow A_{1g}(D_{4h})+B_{1g}(D_{4h}). \]

The \(d_{z^2}\) and \(d_{x^2-y^2}\) orbitals are no longer symmetry-forced to be degenerate, but many symmetry elements remain. In group-theoretical language the distorted structure often chooses a high-symmetry subgroup that is just sufficient to split the electronic representation. This is the epikernel principle.

The same idea appears in the triangular clusters. The distortion need not make all three bond lengths different. A \(C_{2v}\) isosceles triangle is already enough to split \(e'\), so going all the way to a scalene \(C_s\) or \(C_1\) geometry would require extra nuclear distortion without a guaranteed first-order electronic reward.

Static, Dynamic, and Nuclear-Quantum Limits

The same symmetry-allowed Jahn-Teller force can lead to different physical regimes. If the stabilization is large compared with thermal and zero-point fluctuations, the system is static: it is frozen in one distorted geometry and experiments resolve inequivalent bond lengths. If the force is weak, or if the equivalent minima are separated by a low barrier, the system can be dynamic: the instantaneous structure is distorted but the time-averaged structure may look nearly high-symmetry.

A useful schematic diagnostic is

\[ E_{\mathrm{ZP}}\sim V_{\mathrm{barrier}}. \]

When the nuclear zero-point energy or tunneling splitting is comparable to the barrier between equivalent Jahn-Teller minima, a vibronic ground state can delocalize over several distorted structures. Then one may have

\[ \langle Q\rangle =0,\qquad \langle Q^2\rangle \ne 0. \]

This means that local distortions exist, but the averaged structure recovers more symmetry. In crystallography such dynamics can appear as large anisotropic thermal displacement parameters rather than as a clean static bond-length splitting.

Conical Intersection View

The \(E\otimes e\) Jahn-Teller problem is also a conical-intersection problem. With two degenerate electronic states and two active nuclear coordinates \(Q_\theta,Q_\epsilon\), the linear vibronic Hamiltonian can be written as

\[ H_{\mathrm{JT}}= \frac{1}{2}K(Q_\theta^2+Q_\epsilon^2)I+ g(Q_\theta\sigma_z+Q_\epsilon\sigma_x). \]

The adiabatic surfaces are

\[ E_\pm(Q_\theta,Q_\epsilon)= \frac{1}{2}KQ^2\pm gQ,\qquad Q=\sqrt{Q_\theta^2+Q_\epsilon^2}. \]

They intersect at \(Q_\theta=Q_\epsilon=0\), the high-symmetry geometry. Moving away from the origin opens the energy gap linearly. This is a true two-dimensional conical intersection, not merely a one-dimensional avoided crossing. A one-dimensional same-symmetry avoided crossing can be described by

\[ H(x)= \begin{pmatrix} ax & \Delta\\ \Delta & -ax \end{pmatrix}, \qquad E_\pm(x)=\pm\sqrt{a^2x^2+\Delta^2}. \]

If \(\Delta\ne0\), the minimum gap is finite. In a genuine conical intersection the gap can vanish because two independent nuclear coordinates can satisfy the two degeneracy conditions at once. In higher-dimensional nuclear space the conical intersection becomes a seam of dimension \(N-2\), with a two-dimensional branching plane attached to each seam point.

The topology is also different. For the simple two-dimensional model, a loop around the origin changes the sign of the electronic eigenvector and gives a Berry phase of \(\pi\). This phase is absent in an ordinary one-dimensional avoided crossing and can alter vibronic levels, tunneling, and dynamic Jahn-Teller spectra.

Minimal Numerical Check

The script linked below performs a compact model check. The left panel diagonalizes a three-site triangular Hamiltonian along one \(e'\) distortion path and shows the \(e'\) degeneracy splitting. The right panel overlays two illustrative effective Jahn-Teller curves of the form

\[ E(Q)=\frac{1}{2}KQ^2-g|Q|. \]

The "Li3-like" and "Na3-like" labels are pedagogical parameter sets, not experimental constants. They are included only to show that the same symmetry mechanism can have different distortion amplitudes and stabilization energies once \(g\) and \(K\) change.

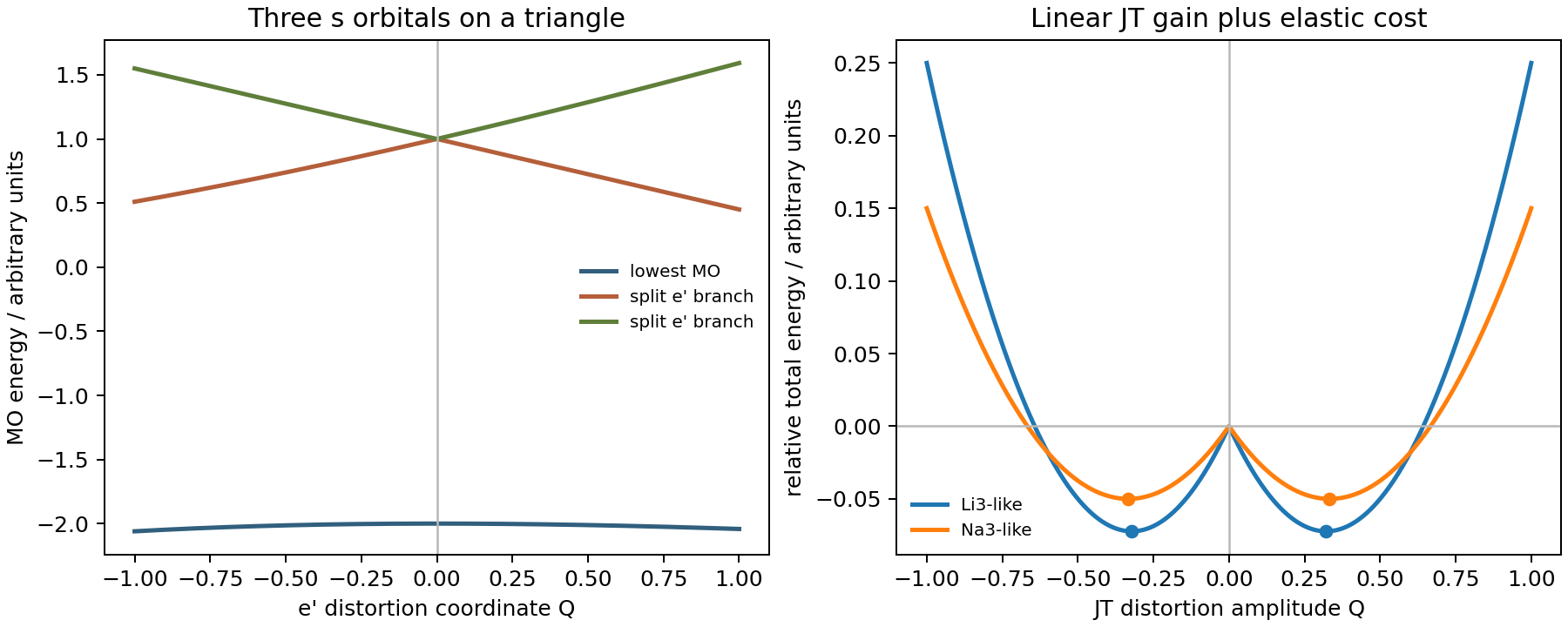

Minimal Jahn-Teller model for triangular Li3 and Na3-like clusters
Minimal Jahn-Teller model. Left: molecular-orbital energies from a three-site triangular tight-binding Hamiltonian along a zero-sum \(e'\) bond distortion coordinate \(Q\). At \(Q=0\), the upper two branches are degenerate and correspond to \(e'\); for \(Q\ne0\), this pair splits linearly to first order. Right: total effective energy \(E(Q)=KQ^2/2-g|Q|\) in arbitrary units. The minima at \(\pm g/K\) are the two equivalent distorted structures along this one-dimensional cut.
Model label \(g\) \(K\) \(Q_0=g/K\) \(E_{\mathrm{JT}}=g^2/(2K)\)
Li3-like0.451.400.3210.072
Na3-like0.300.900.3330.050

Takeaways

  • Degenerate orbitals are not enough by themselves; the occupation of the degenerate shell must be non-symmetric for a first-order Jahn-Teller instability.
  • At a high-symmetry geometry, \([\hat H_e,\hat U_g]=0\) makes each degenerate electronic subspace invariant under the point group, but a single occupied vector inside a multidimensional irreducible representation need not be invariant.
  • The active Jahn-Teller source is the non-totally-symmetric component of the electronic density, and a linear vibronic term is allowed only when \(\Gamma(Q)\otimes\Gamma(\rho)\) contains the totally symmetric representation.
  • Three equivalent \(s\) orbitals in an equilateral \(\mathrm{Li_3}\) or \(\mathrm{Na_3}\) triangle form \(a_1'+e'\), and the three valence electrons occupy \((a_1')^2(e')^1\).
  • The expected distortion is \(D_{3h}\rightarrow C_{2v}\): an equilateral triangle becomes an isosceles triangle.
  • Jahn-Teller symmetry breaking is usually economical: it removes the degeneracy while preserving as much symmetry as possible.
  • The \(E\otimes e\) Jahn-Teller model is a symmetry-enforced conical intersection. Dynamic Jahn-Teller behavior adds nuclear motion, tunneling, and Berry-phase physics around that intersection.

Code and Data

  • li3_na3_jt_model.py diagonalizes the triangular three-site model, evaluates the effective JT curves, and writes the figure and CSV table.
  • li3-na3-jt-model.csv stores the sampled distortion coordinate, three molecular-orbital energies, and two toy total-energy curves.

References

  • Jahn and Teller, Proc. R. Soc. Lond. A 161, 220 (1937).
  • Bersuker, The Jahn-Teller Effect, Cambridge University Press.
  • Domcke, Yarkony, and Koeppel, eds., Conical Intersections, World Scientific.
