MQC II: Ehrenfest Mean-Field Dynamics

Part I used FSSH to let an ensemble branch between adiabatic surfaces. Ehrenfest dynamics makes the opposite closure: the nuclei see one averaged force generated by the current electronic density matrix. This makes the method simple and smooth, but it also explains why it struggles once different electronic components should pull the nuclear wavepacket apart.

Mean-Field Force

The electronic coefficients are propagated with the same moving-basis equation used in FSSH,

\dot c_j= -\frac{i}{\hbar}E_j(R)c_j -\sum_k \dot R\cdot d_{jk}(R)c_k.

The nuclear force is the expectation value of the electronic force operator along the current trajectory. For a real two-state adiabatic model, the form used in the benchmark is

F_{\mathrm{Eh}} = \rho_{00}F_0+\rho_{11}F_1 +2\,\mathrm{Re}\!\left[\rho_{01}d_{01}\right](E_1-E_0), \qquad F_i=-\nabla_R E_i.

The first two terms are the population-weighted average of adiabatic forces. The last term is the coherence force. If the electronic state is a coherent superposition near an avoided crossing, this term can matter as much as the population weights.

What This Buys

Ehrenfest has no random hops, no frustrated hops, and no velocity-rescaling ambiguity. It is deterministic once the initial condition is fixed, and it is often stable for short-time charge or exciton motion where a delocalized electronic state remains physically meaningful.

The price is the missing branch structure. If half of the electronic amplitude should travel on one surface and half on another, Ehrenfest keeps one set of nuclear coordinates and one momentum. The trajectory therefore feels an artificial mean surface after the physical wavepacket would have separated. This is the classic overcoherence problem.

Workflow

Use the same Tully simple avoided crossing as Part I, with \(A=0.01\), \(B=1.6\), \(C=0.005\), \(D=1.0\), \(M=2000\), and \(\hbar=1\).
Initialize the lower adiabatic state at \(x=-10\) and scan \(p_0=8,12,16,20,24,28,32\).
Propagate the coupled variables \((q,p,c_0,c_1)\) with a fourth-order Runge-Kutta step of \(\Delta t=0.2\).
Stop each trajectory after it leaves the interaction region at \(|x|\approx12\).
Store a detailed time trace for \(p_0=20\) and a final-population scan over all momenta.
Overlay the same finite sinc-DVR quantum reference used in Part I: a Gaussian packet centered at \(x_0=-10\), width \(\sigma=1\), propagated exactly after diagonalizing the two-channel grid Hamiltonian.

Result

The \(p_0=20\) trajectory crosses the coupling region at about \(t=1000\). The upper-state population rises sharply, overshoots, and then settles to 0.522 by the time the trajectory reaches the transmitted side. The DVR exact upper adiabatic probability for the corresponding Gaussian packet is 0.493. Across the momentum scan, Ehrenfest final upper population increases from 0.137 at \(p_0=8\) to 0.753 at \(p_0=32\), while the DVR curve rises from near zero to 0.744.

Compared with the FSSH article, the important difference is the meaning of the number. FSSH reports a fraction of trajectories whose active surface ends on the upper branch. Ehrenfest reports a continuous electronic population carried by one nuclear path. The agreement with the exact curve is reasonable for this simple transmitted wavepacket scan, but it should not be overread: in a system where the nuclear packet should split into well-separated branches, the same averaging becomes a physical limitation.

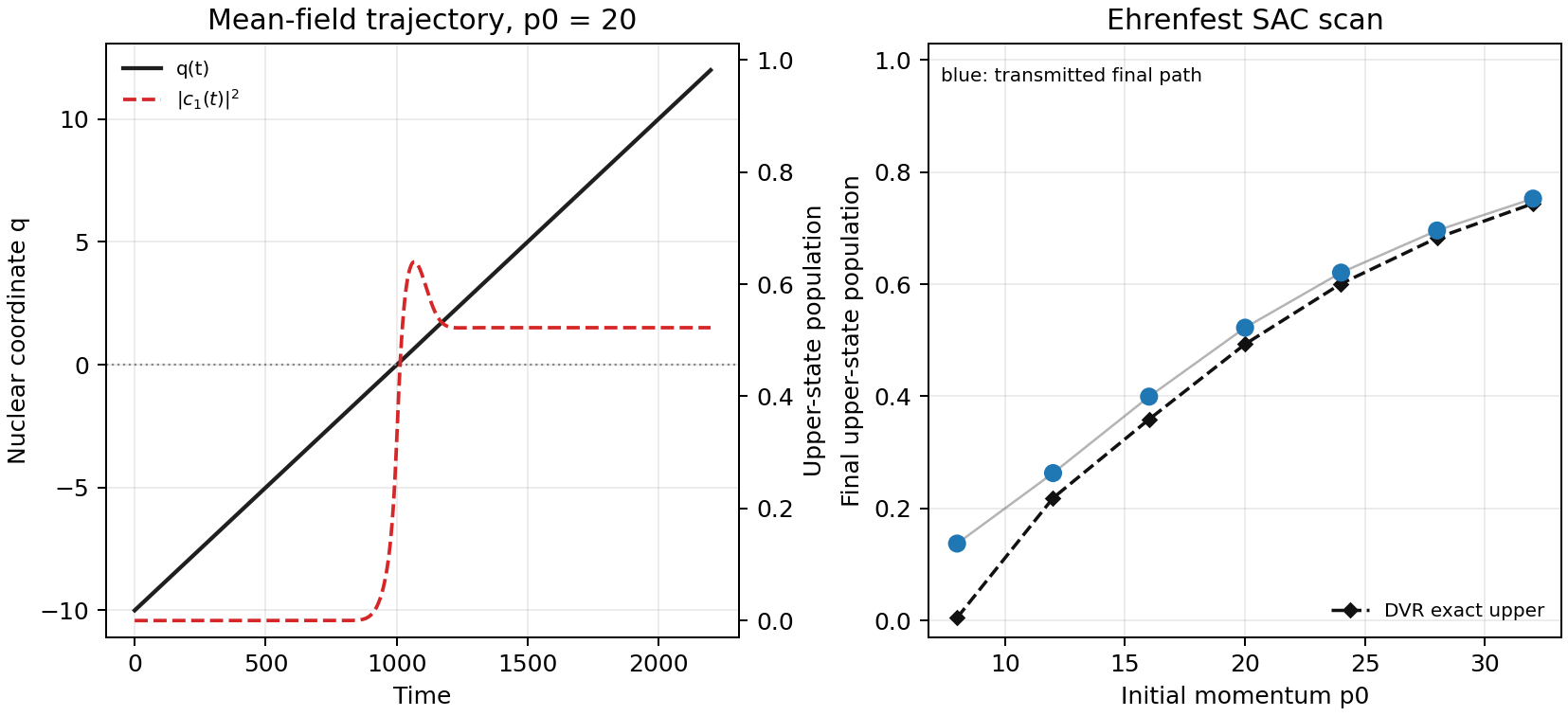

Ehrenfest mean-field benchmark on Tully simple avoided crossing — Ehrenfest benchmark on Tully's simple avoided crossing. Left: horizontal axis is time; the left vertical axis is nuclear coordinate \(q(t)\), shown by the black solid curve; the right vertical axis is upper adiabatic population \(|c_1(t)|^2\), shown by the red dashed curve. The gray dotted horizontal line marks the crossing region \(q=0\). Right: horizontal axis is initial momentum \(p_0\); vertical axis is final upper-state population. Blue markers are Ehrenfest final populations, and black dashed diamonds are the DVR exact upper adiabatic probabilities for the finite-width Gaussian packet. The plot demonstrates the central feature of Ehrenfest dynamics: population transfer is continuous, but the nuclei remain on a single mean-field path.

Code used in this note

ehrenfest_tully_sac.py propagates the coupled mean-field equations, writes the final momentum scan, stores the \(p_0=20\) time trace, and renders the figure.
dvr_tully_sac_reference.py builds and diagonalizes the finite sinc-DVR two-channel Hamiltonian used for the exact quantum reference.
tully_common.py defines the Tully SAC potential, adiabatic energies, forces, derivative coupling, and shared electronic propagation helpers.
ehrenfest-tully-sac.csv stores final coordinates, momenta, branch labels, populations, and mean energies for the momentum scan.
ehrenfest-tully-sac-trace-p20.csv stores the time series used in the left panel.
ehrenfest-tully-sac-summary.csv stores the compact \(p_0=20\) values quoted in the text.
dvr-tully-sac-reference.csv stores the DVR transmitted/reflected lower/upper adiabatic probabilities.

References

Crespo-Otero and Barbatti, Chem. Rev. 118, 7026 (2018).
Nelson, White, Bjorgaard, Sifain, Zhang, Nebgen, Fernandez-Alberti, Mozyrsky, Roitberg, and Tretiak, Chem. Rev. 120, 2215 (2020).
Tully, J. Chem. Phys. 93, 1061 (1990).

MQC series map

Part 0: Background and Working Assumptions - BO approximation, Born-Huang couplings, NAC/HST formulas, MQC closures, and limitations.
Part I: Fewest-Switches Surface Hopping - active surfaces, stochastic hops, velocity rescaling, and a Tully SAC branch benchmark.
Part II: Ehrenfest Mean-Field Dynamics - mean-field forces, continuous electronic populations, and the same Tully SAC scan.
Part III: P-Matrix Decoherence and Detailed Balance - directed density-matrix variables, pairwise decoherence, Boltzmann detailed balance, and controlled toy diagnostics.
Part IV: MMST Mapping and ZPE Leakage - oscillator mapping variables, electronic phase sampling, ZPE leakage, gamma choices, SQC-style corrections, and spin-mapping context.
