CMD II: Curvature Red Shift in a 2D Morse Bottle

The first CMD note used centroid potentials of mean force as a constructive tool: a path-integral free-energy surface softened a one-dimensional avoided crossing and improved one Ehrenfest benchmark. This second note is deliberately the opposite. It uses the same centroid-force logic on a curved two-dimensional surface and shows a known failure mode: the CMD centroid can find an artificial instanton basin, flatten its effective radial PMF, and red-shift the stretch spectrum even though the direct quantum benchmark does not.

Benchmark Question

The target is the CMD curvature problem discussed by Trenins and Althorpe for a two-dimensional "champagne-bottle" Morse model. The surface is one-state and isotropic,

V(r)=D_0\left[1-\exp[-\alpha(r-r_e)]\right]^2, \qquad r=\sqrt{x^2+y^2}.

The parameters are \(r_e=1.8324\), \(D_0=0.18748\), \(\alpha=1.1605\), and \(m=1741.05198\), all in atomic units. The physical minimum is a ring, not a point. That ring is harmless for exact quantum dynamics, but it is dangerous for centroid-constrained imaginary-time paths because many bead configurations on the ring can have a small Cartesian centroid.

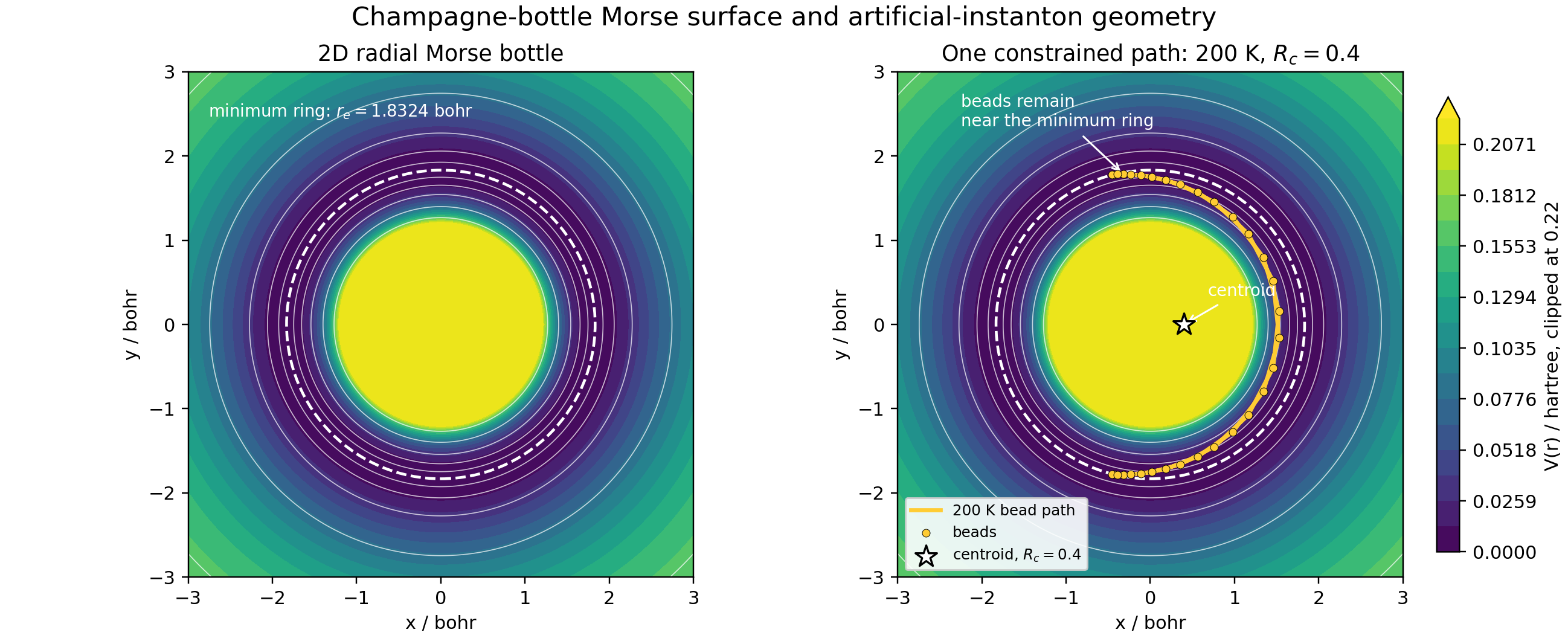

2D champagne-bottle Morse potential with one low-temperature centroid-constrained bead path — The 2D Morse bottle used for the CMD curvature test. The dashed circle marks the physical minimum at \(r_e\). In the right panel, a low-temperature path constrained to \(R_c=0.4\) bohr can keep its beads near the minimum ring while its centroid sits much closer to the origin. This is the geometry behind the artificial-instanton basin.

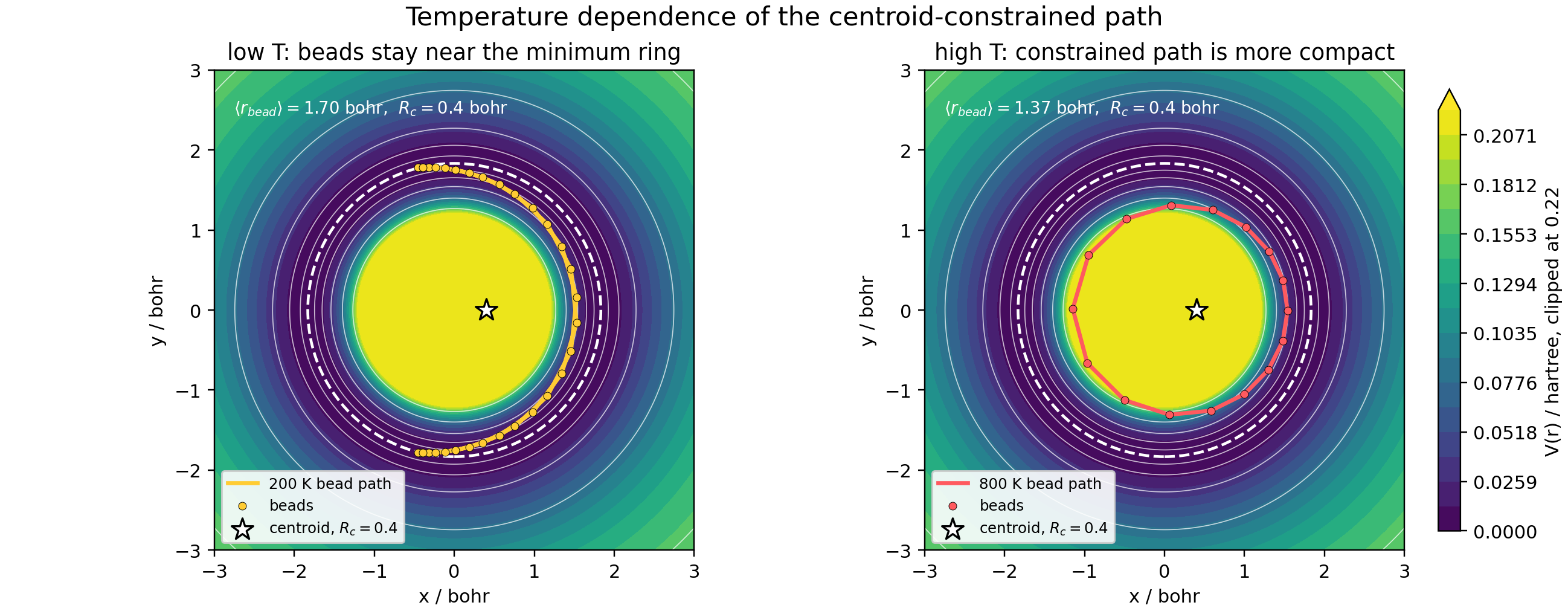

Temperature comparison of centroid-constrained bead paths at 200 K and 800 K — Temperature dependence of the same \(R_c=0.4\) constrained-path diagnostic. At 200 K, the imaginary-time path can spend most of its length close to the low-energy minimum ring, with \(\langle r_{\mathrm{bead}}\rangle\approx1.70\) bohr. At 800 K, the path is shorter and more compact; under the same centroid constraint the beads sit further inside, \(\langle r_{\mathrm{bead}}\rangle\approx1.37\) bohr, so the small-\(R_c\) artificial basin is much less favorable.

Observable

A Cartesian velocity autocorrelation mixes the radial stretch with low-frequency rotation around the bottle. I therefore use the radial stretch velocity as the observable:

\dot r = \frac{\mathbf q\cdot\mathbf v}{r}

for trajectory methods, and \(\dot r=i[H,r]\) for the DVR benchmark. The reported spectrum is the Fourier transform of the Kubo radial velocity autocorrelation. This is a natural observable: if CMD really changes the radial stiffness of the centroid PMF, it should show up as a red shift of the radial stretch band rather than as an artificial population threshold or a hand-picked event.

Direct DVR Reference

The benchmark is not a wavepacket launched from one hand-picked initial condition. It is a thermal density-matrix calculation. For a radial operator in an isotropic 2D potential, the DVR implementation uses an angular-momentum block decomposition and evaluates the Kubo correlation in the energy basis:

C_{vv}^{K}(t)= \frac{1}{\beta Z}\int_0^\beta d\lambda\, \mathrm{Tr}\left[ e^{-(\beta-\lambda)H}\dot r\, e^{-\lambda H} e^{iHt}\dot r e^{-iHt} \right].

Numerically this is a direct density-matrix benchmark: diagonalize each radial partial-wave block, form the Kubo thermal weights, and sum the angular degeneracies. That matters because the CMD artifact is a finite-temperature equilibrium artifact of the centroid free energy; a single scattering packet would not be testing the same object.

CMD Mean Force

The CMD/CA surface is computed from a centroid-constrained path-integral ensemble. For a target vector centroid \(\mathbf R_c\), the sampled paths obey

\bar{\mathbf q}=\frac{1}{P}\sum_{k=1}^{P}\mathbf q_k=\mathbf R_c .

The Euclidean action is

S_P(\mathbf q)= \frac{1}{2\beta_P}\sum_{k=1}^{P} m\left|\mathbf q_{k+1}-\mathbf q_k\right|^2 +\beta_P\sum_{k=1}^{P}V(\mathbf q_k), \qquad \beta_P=\frac{\beta}{P}.

Metropolis moves displace one bead, then translate the whole path back to the requested centroid. The radial CMD mean force is the constrained average of the bead-mean physical force:

\mathbf F_c(\mathbf R_c)= -\left\langle \frac{1}{P}\sum_{k=1}^{P}\nabla V(\mathbf q_k) \right\rangle_{\bar{\mathbf q}=\mathbf R_c}.

By rotational symmetry, the force is projected along the centroid direction and integrated to a radial PMF \(A(R_c)\), with \(dA/dR_c=-F_c(R_c)\). The CMD dynamics then propagates the centroid on this PMF. The artificial-instanton diagnostic is only a way to visualize low-action constrained paths; it is not used to redefine the force.

Why the Red Shift Happens

In a compact ring polymer, every bead sits near the centroid and the CMD mean force resembles the physical Morse force. At low temperature, however, the imaginary-time polymer is long enough to bend around the minimum ring. A small centroid radius no longer means that the bead positions sit at small \(r\); it can mean that the beads are distributed along a curved arc of the real minimum ring. The centroid is then artificially cheap.

The radial frequency of CMD motion is controlled by the curvature of the centroid PMF,

\Omega_{\mathrm{CMD}}^2 \approx \frac{1}{m}\frac{d^2 A(R_c)}{dR_c^2}.

Once the constrained ensemble collapses into the artificial-instanton basin, \(A(R_c)\) becomes too flat in the radial coordinate. A flatter PMF means a smaller effective frequency, hence a red-shifted radial stretch spectrum. This is the same CMD force formula that was useful in Part I; the difference is the multidimensional curved geometry of the centroid constraint.

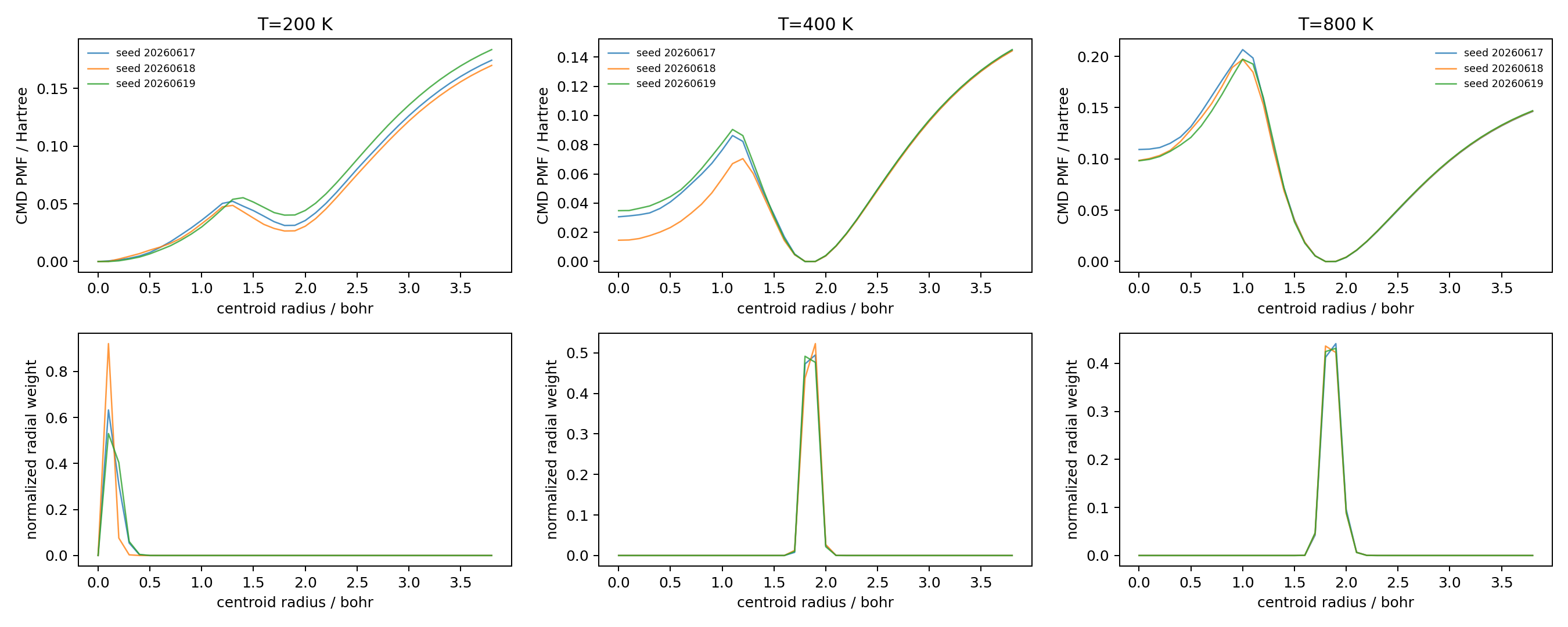

CMD radial PMF and centroid radial distribution at 200, 400, and 800 K — CMD radial PMF and centroid distribution. At 200 K the centroid distribution collapses to very small \(R_c\), even though the physical potential minimum is at \(r_e=1.8324\) bohr. At 800 K the distribution returns to the ordinary stretch region, and the CMD spectrum returns near the direct quantum benchmark.

Controls

I compare five objects. DVR is the direct-density-matrix Kubo reference. CMD/CA is centroid dynamics on the constrained PMF above. The "classical EH" curve is the one-state classical trajectory limit sampled from the thermal ensemble. RPMD and TRPMD use full ring-polymer thermal sampling and centroid radial velocity correlations; they are included as path-integral trajectory controls that do not collapse the dynamics onto the centroid PMF.

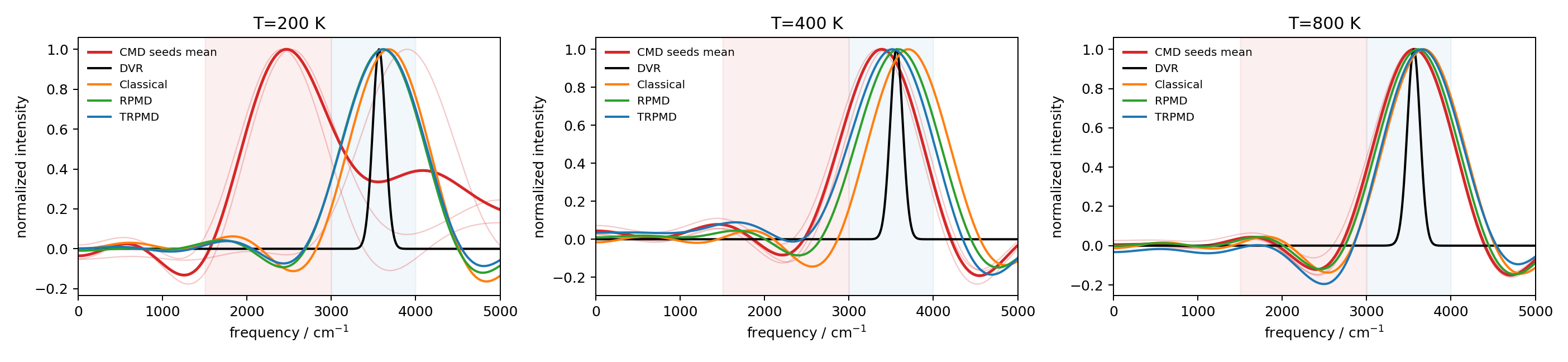

DVR, CMD, classical, RPMD, and TRPMD radial velocity spectra — Validation spectra for 200, 400, and 800 K. Thin red curves are individual CMD seeds and the thick red curve is their mean. The key qualitative signature is not a single 200 K maximum, which is seed-sensitive, but the low-temperature transfer of CMD spectral weight to softer frequencies while DVR, RPMD, TRPMD, and the classical control remain in the OH-stretch band.

Medium Validation Numbers

The table below uses the 3000-4000 cm\(^{-1}\) stretch band for peak reporting, matching the stretch region used in the literature comparison. CMD entries are seed means and standard deviations over three constrained-PIMC realizations. The "soft fraction" is the positive spectral area between 1500 and 3000 cm\(^{-1}\), divided by the positive area up to 5000 cm\(^{-1}\).

T / K	DVR peak	CMD peak	Classical peak	RPMD peak	TRPMD peak	CMD soft fraction	CMD \(P(R_c<0.4)\)
200	3565.76	3301.95 +/- 517.20	3682.19	3611.63	3620.38	0.515 +/- 0.438	0.99996
400	3563.38	3394.00 +/- 48.34	3702.97	3586.68	3514.86	0.165 +/- 0.044	1.83e-07
800	3558.89	3563.28 +/- 14.77	3677.82	3607.66	3656.85	0.070 +/- 0.023	2.13e-19

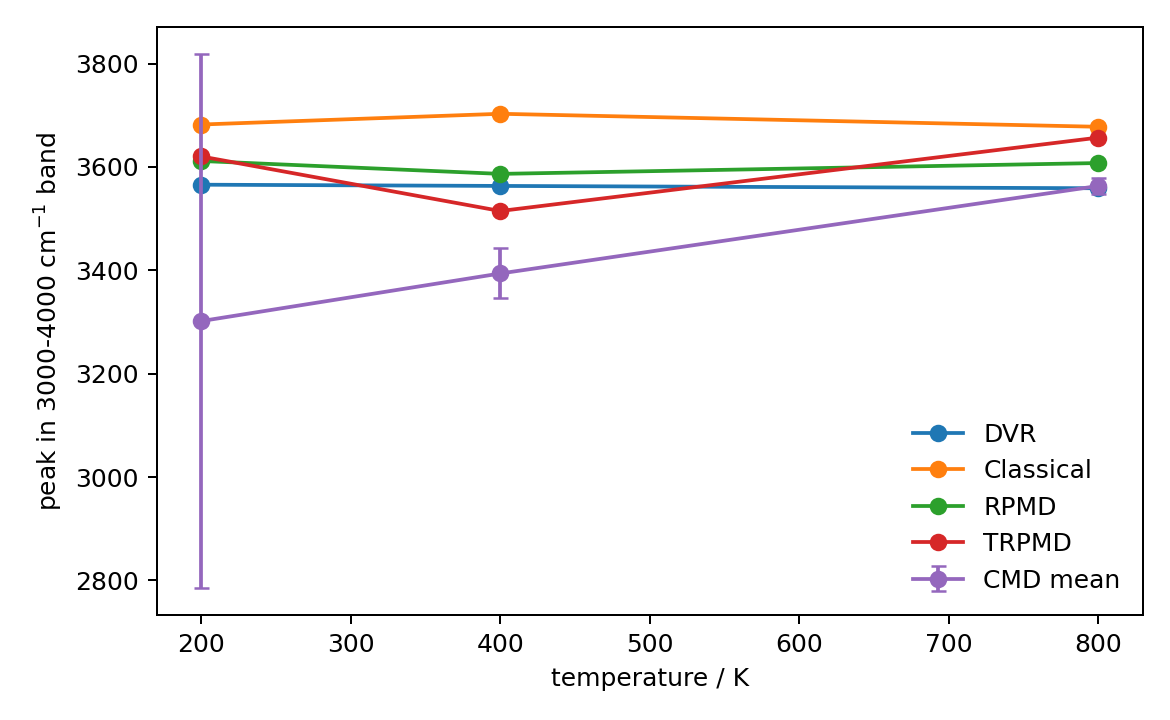

Peak positions in the 3000 to 4000 inverse centimeter stretch band — Stretch-band peak summary. The DVR benchmark is nearly temperature independent in this medium validation run. CMD approaches the benchmark at 800 K but shifts downward and broadens as the artificial constrained-path basin appears at lower temperature.

What Is Decisive Here?

The decisive part is geometric, not just a lucky numerical peak. The exact thermal DVR spectrum does not show a comparable low-temperature red shift. RPMD and TRPMD remain in the same stretch region as the direct quantum benchmark. CMD, in contrast, develops a low-\(R_c\) centroid distribution and a large soft-frequency spectral fraction at 200 K. Those three facts are mutually reinforcing: the wrong PMF geometry creates the wrong dynamical stiffness.

There is also an important limitation. The 200 K CMD spectrum is broad and seed-sensitive, so a single maximum is a fragile scalar summary. I would not claim that this medium run is a production-level point-by-point reproduction of every published curve. I would claim that it reproduces the mechanism of the curvature problem in Toymodel: constrained centroid sampling opens an artificial-instanton basin, and CMD turns that basin into a red-shifted radial stretch response.

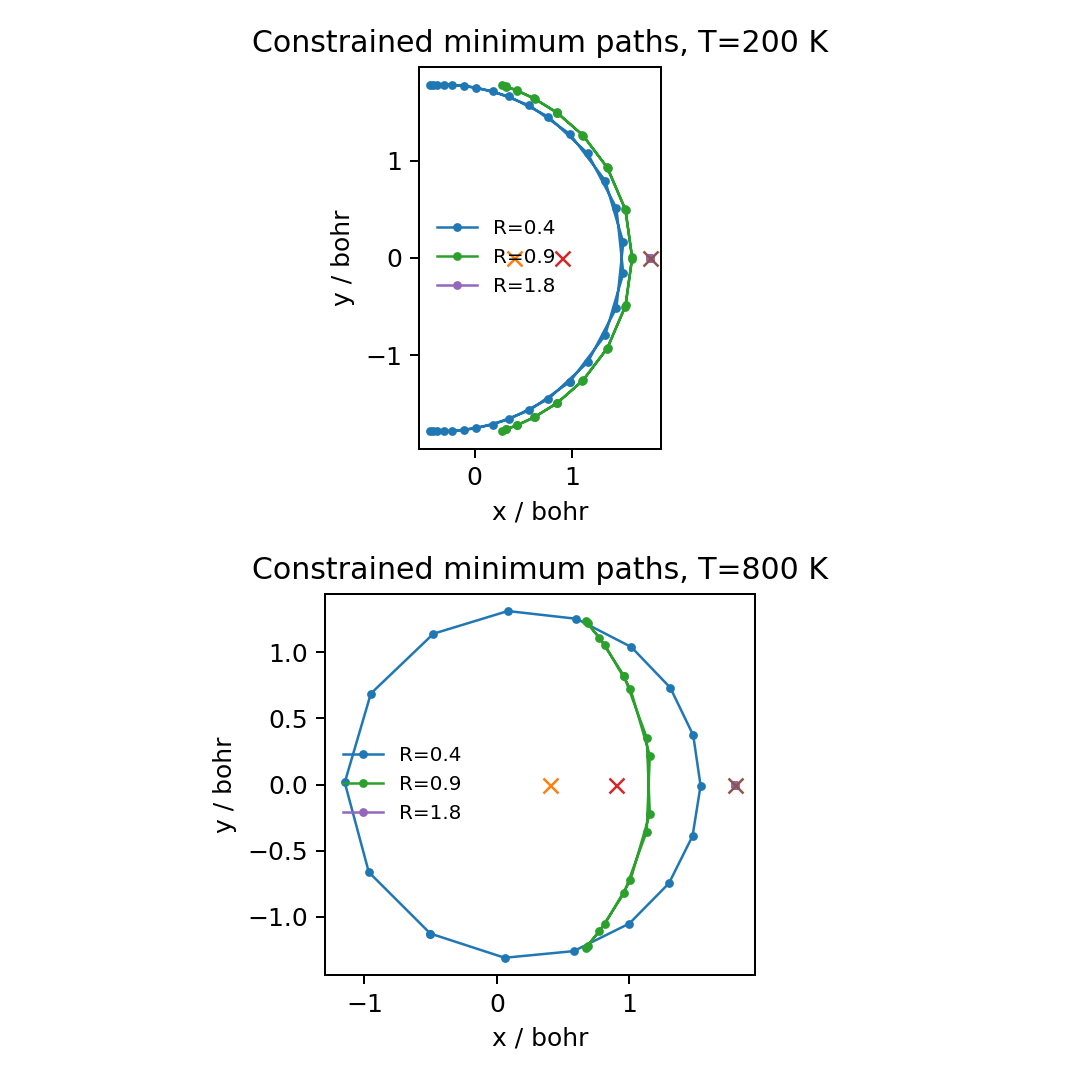

Representative artificial instanton paths at low and high temperature — Representative constrained paths from the artificial-instanton diagnostic. At low temperature and small centroid radius, the path can wrap around the minimum ring while keeping a small centroid. This explains why \(R_c\) can be small without the beads actually sitting at the high-energy center of the Morse bottle.

Code and Data

cmd_curvature_validation.py is the Toymodel validation driver used to build the DVR, CMD, classical, RPMD, and TRPMD comparison tables and spectra. Set TOYMODEL_ROOT to a Toymodel checkout when running it outside the repository.
run_cmd_curvature_smoke.py provides the shared spectrum, trajectory, and plotting helpers used by the validation driver.
cmd_curvature_potential_surface.py regenerates the 2D potential-surface figure and the low-/high-temperature constrained-path comparison.
cmd-curvature-method-summary.csv stores the method-level spectral metrics.
cmd-curvature-cmd-seed-summary.csv stores the CMD seed means and standard deviations.

References

The conceptual target is the CMD curvature problem of Trenins and Althorpe, J. Chem. Phys. 149, 014102 (2018). The CMD centroid-force construction follows the centroid density and centroid molecular dynamics framework of Cao and Voth, while the broader comparison to RPMD is best understood through the Matsubara-dynamics analysis of CMD and RPMD approximations.
